Lab 4: Config Sync Groups

Introduction

Introduction

In this lab, you’ll create and manage Config Sync Groups in NGINX One Console. Config Sync Groups keep your NGINX instances in sync with a shared configuration. You’ll create a group, add instances, apply a shared config, and fix sync errors.

---

What you’ll learn

What you’ll learn

By the end of this lab, you can:

• Create a Config Sync Group
• Add instances to a Config Sync Group
• Update the shared configuration for a Config Sync Group

---

Before you begin

Before you begin

Make sure you have:

• All labs require an F5 Distributed Cloud (XC) account with NGINX One enabled. If you don’t have an account or need to verify access, follow the steps in Lab 1: Before you begin.

• Completed Lab 2: Run workshop components with Docker
• Docker and Docker Compose installed and running

• Set these environment variables:

  • TOKEN: your data plane key, for example:

    Copy

    export TOKEN="your-data-plane-key"

    export TOKEN="your-data-plane-key"

  • JWT: your NGINX Plus license JWT. Save it as nginx-repo.jwt, then run:

    Copy

    export JWT=$(cat path/to/nginx-repo.jwt)

    export JWT=$(cat path/to/nginx-repo.jwt)

  • NAME: a unique ID for your workshop (for example, s.jobs):

    Copy

    export NAME="s.jobs"

    export NAME="s.jobs"

• Basic familiarity with Linux command line and NGINX concepts

---

Exercise 1: Create a Config Sync Group

Exercise 1: Create a Config Sync Group

A Config Sync Group lets you apply one configuration to multiple NGINX instances and keep them in sync.

1. In NGINX One Console, select Manage > Config Sync Groups.
2. In the Config Sync Groups pane, select Add Config Sync Group.
3. In the form, enter $NAME-sync-group in the Name field (for example, s.jobs-sync-group).
4. Select Create. The new group appears with Details and Configuration tabs.
   • The Details tab shows:
     • Object ID
     • Last publication status and config version ID
     • Config Sync Status (for example, Unknown)
     • Instance status counts (In Sync, Out of Sync, Offline, Unavailable)
5. Switch to the Configuration tab to view your group’s configuration files. It’s empty for now. You’ll add one in Exercise 2.

---

Exercise 2: Add instances to the Config Sync Group

Exercise 2: Add instances to the Config Sync Group

Note You can mix NGINX Open Source and NGINX Plus instances in one group. Any config feature you use must work on every instance. If you need NGINX Plus-only features, create a separate group.

You can mix NGINX Open Source and NGINX Plus instances in one group. Any config feature you use must work on every instance. If you need NGINX Plus-only features, create a separate group.

When you create a Config Sync Group, it has no shared config. You can add one in two ways:

• Define config manually: Select your group, go to the Configuration tab, then select Edit Configuration. Add or paste your NGINX config, select Next, review the diff, and select Save and Publish.
• Populate from first instance: Add one NGINX instance. The console uses that instance’s existing config as the group’s shared config.

Populate group config from first instance

Populate group config from first instance

1. Select Manage > Config Sync Groups.

2. Select your $NAME-sync-group (for example, s.jobs-sync-group).

3. On the Details tab, in the Instances pane, select Add Instance to Config Sync Group.

4. Select Register a new instance with NGINX One then add to config sync group, then select Next.

5. Select Use existing key and paste $TOKEN (or your actual data plane key) into the Data Plane Key box.

6. Select the Docker Container tab. The tab shows sample commands. Copy them and modify as follows.

7. Log in to the private registry:

   shell

   Copy

   echo "$JWT" \
     | docker login private-registry.nginx.com \
       --username "$JWT" --password-stdin

   echo "$JWT" \
     | docker login private-registry.nginx.com \
       --username "$JWT" --password-stdin

8. Pull a Docker image (replace version as needed). You can select a specific NGINX Plus version, OS type, and OS version. Here, use the R31 Alpine image:

   Copy

   docker pull private-registry.nginx.com/nginx-plus/agent:nginx-plus-r31-alpine-3.19-20240522

   docker pull private-registry.nginx.com/nginx-plus/agent:nginx-plus-r31-alpine-3.19-20240522

   See Pulling the image for details.

9. Run the container. Copy the docker run command from the user interface and modify it:

   • Replace YOUR_JWT_HERE in --env NGINX_LICENSE_JWT with $JWT
   • Replace YOUR_DATA_PLANE_KEY in --env NGINX_AGENT_SERVER_TOKEN with $TOKEN
   • Add --hostname "$NAME-one-manual" and --name "$NAME-one-manual"
   • Ensure --env NGINX_AGENT_INSTANCE_GROUP="$NAME-sync-group" is set
   shell

   Copy

   docker run \
   --hostname "$NAME-one-manual" \
   --name "$NAME-one-manual" \
   --env NGINX_LICENSE_JWT="$JWT" \
   --env NGINX_AGENT_SERVER_GRPCPORT=443 \
   --env NGINX_AGENT_SERVER_HOST=agent.connect.nginx.com \
   --env NGINX_AGENT_SERVER_TOKEN="$TOKEN" \
   --env NGINX_AGENT_INSTANCE_GROUP="$NAME-sync-group" \
   --env NGINX_AGENT_TLS_ENABLE=true \
   --restart always \
   --runtime runc \
   -d private-registry.nginx.com/nginx-plus/agent:nginx-plus-r31-alpine-3.19-20240522

   docker run \
   --hostname "$NAME-one-manual" \
   --name "$NAME-one-manual" \
   --env NGINX_LICENSE_JWT="$JWT" \
   --env NGINX_AGENT_SERVER_GRPCPORT=443 \
   --env NGINX_AGENT_SERVER_HOST=agent.connect.nginx.com \
   --env NGINX_AGENT_SERVER_TOKEN="$TOKEN" \
   --env NGINX_AGENT_INSTANCE_GROUP="$NAME-sync-group" \
   --env NGINX_AGENT_TLS_ENABLE=true \
   --restart always \
   --runtime runc \
   -d private-registry.nginx.com/nginx-plus/agent:nginx-plus-r31-alpine-3.19-20240522

10. In the Config Sync Groups pane, select Refresh. The new instance appears and the shared config populates. The first instance added becomes the default config source.

11. Select the Configuration tab to view the shared config.

Add instances using Docker Compose

Add instances using Docker Compose

Instead of registering containers manually, you can set the sync group in your Compose file and restart all containers.

1. Stop the running containers:

   Copy

   docker compose down

   docker compose down

2. Open compose.yaml in a text editor.

3. Uncomment the lines beginning with:

   Copy

   NGINX_AGENT_INSTANCE_GROUP: $NAME-sync-group

   NGINX_AGENT_INSTANCE_GROUP: $NAME-sync-group

4. Restart all containers:

   Copy

   docker compose up --force-recreate -d

   docker compose up --force-recreate -d

5. In NGINX One Console, select Refresh. Instances with NGINX_AGENT_INSTANCE_GROUP set appear in the Config Sync Group.

6. Instances automatically sync the existing NGINX config. When sync finishes, the Config Sync Status shows In Sync.

---

Exercise 3: Edit the group config and sync changes

Exercise 3: Edit the group config and sync changes

Modify the shared configuration and apply the changes to all group members.

1. Select Manage > Config Sync Groups, then choose $NAME-sync-group (for example, s.jobs-sync-group).

2. Select the Configuration tab.

3. Select Edit Configuration (pencil icon).

4. In the file list, select default.conf.

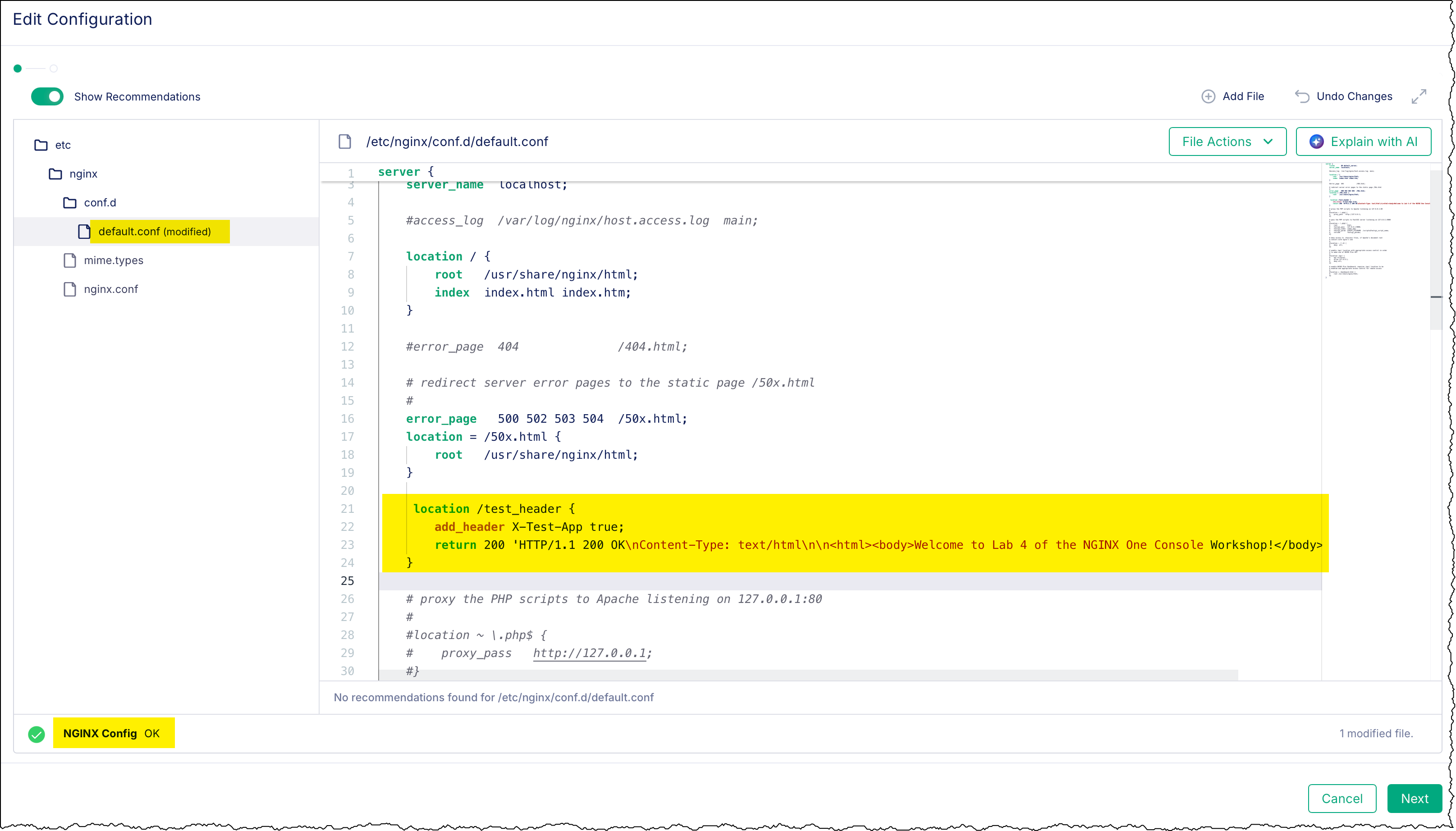

5. In the editor pane, add these lines at 21–24:

   yaml

   Copy

   location /test_header {
       add_header X-Test-App true;
       return 200 'HTTP/1.1 200 OK\nContent-Type: text/html\n\n<html><body>Welcome to Lab 4 of the NGINX One Console Workshop!</body></html>';
   }

   location /test_header {
       add_header X-Test-App true;
       return 200 'HTTP/1.1 200 OK\nContent-Type: text/html\n\n<html><body>Welcome to Lab 4 of the NGINX One Console Workshop!</body></html>';
   }



   The file is marked modified and the validator shows NGINX Config OK.

6. Select Next, review the diff, then select Save and Publish.

7. Select the Details tab and confirm Last Publication Status shows Succeeded.

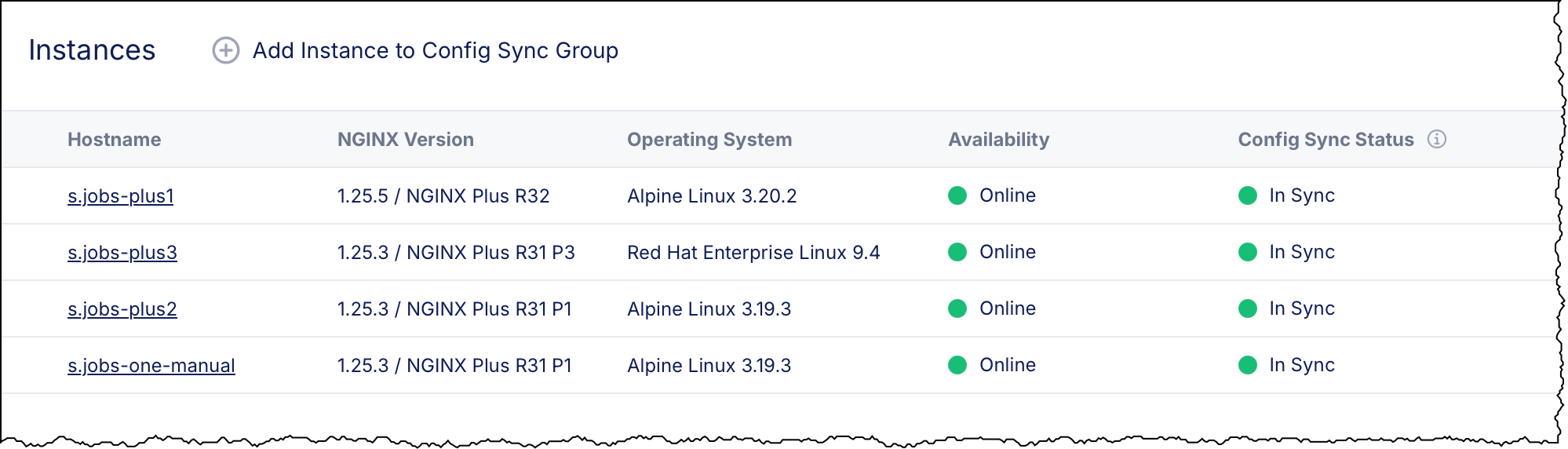

8. In the Instances table, confirm each host shows Config Sync Status = In Sync.

9. Test your change by curling any instance’s HTTP endpoint. Replace <HOST> and <PORT> with the values from the Instances table (for example, localhost:80):

   Copy

   curl http://localhost:80/test_header

   curl http://localhost:80/test_header

   You should see:

   text

   Copy

   HTTP/1.1 200 OK
   Content-Type: text/html

   <html><body>Welcome to Lab 4 of the NGINX One Console Workshop!</body></html>

   HTTP/1.1 200 OK
   Content-Type: text/html

   <html><body>Welcome to Lab 4 of the NGINX One Console Workshop!</body></html>

---

Next steps

Next steps

You’re ready to install your NGINX Plus license (JWT) on each instance. This will let you upgrade them to NGINX R34.

Go to Lab 5: Upgrade NGINX Plus to the latest version.

---
