Using GCP Marketplace Ingress Controller

This document will walk you through the steps needed to deploy the NGINX Ingress Controller through the GCP Marketplace.

This document will walk you through the steps needed to deploy and configure the NGINX Ingress Controller through the GCP Marketplace.

Product overview.

The F5 NGINX Ingress Controller is an implementation of a Kubernetes Ingress Controller for NGINX and NGINX Plus.

Basic features include:

  • Host-based routing. For example, routing requests with the host header foo.example.com to one group of services and the host header bar.example.com to another group.
  • Path-based routing. For example, routing requests with the URI that starts with /serviceA to service A and requests with the URI that starts with /serviceB to service B.
  • TLS/SSL termination for each hostname, such as foo.example.com.

One-time setup

To quickly get the NGINX Ingress Controller up and running, follow our Installation with Manifests guide. This details how to locally build an image of the NGINX Ingress Controller as well as the necessary CustomResourceDefinitions (CRDs) required.

Installation

Install NGINX Ingress Controller to an existing GKE cluster

  1. Deploy NGINX Ingress Controller from GUI

    Open Google Cloud Console and navigate to Kubernetes Engine > Applications

  2. Click on DEPLOY FROM MARKETPLACE, and search for NGINX Ingress Controller

    NOTE: Please verify that you select a Premium Edition controller image that has been published by NGINX, Inc., and not a third-party.

    Choose the appropriate NGINX Ingress Controller image, and click CONFIGURE

  3. Install to an existing cluster

    NOTE: Click on OR SELECT AN EXISTING CLUSTER if you see the CREATE NEW CLUSTER button.

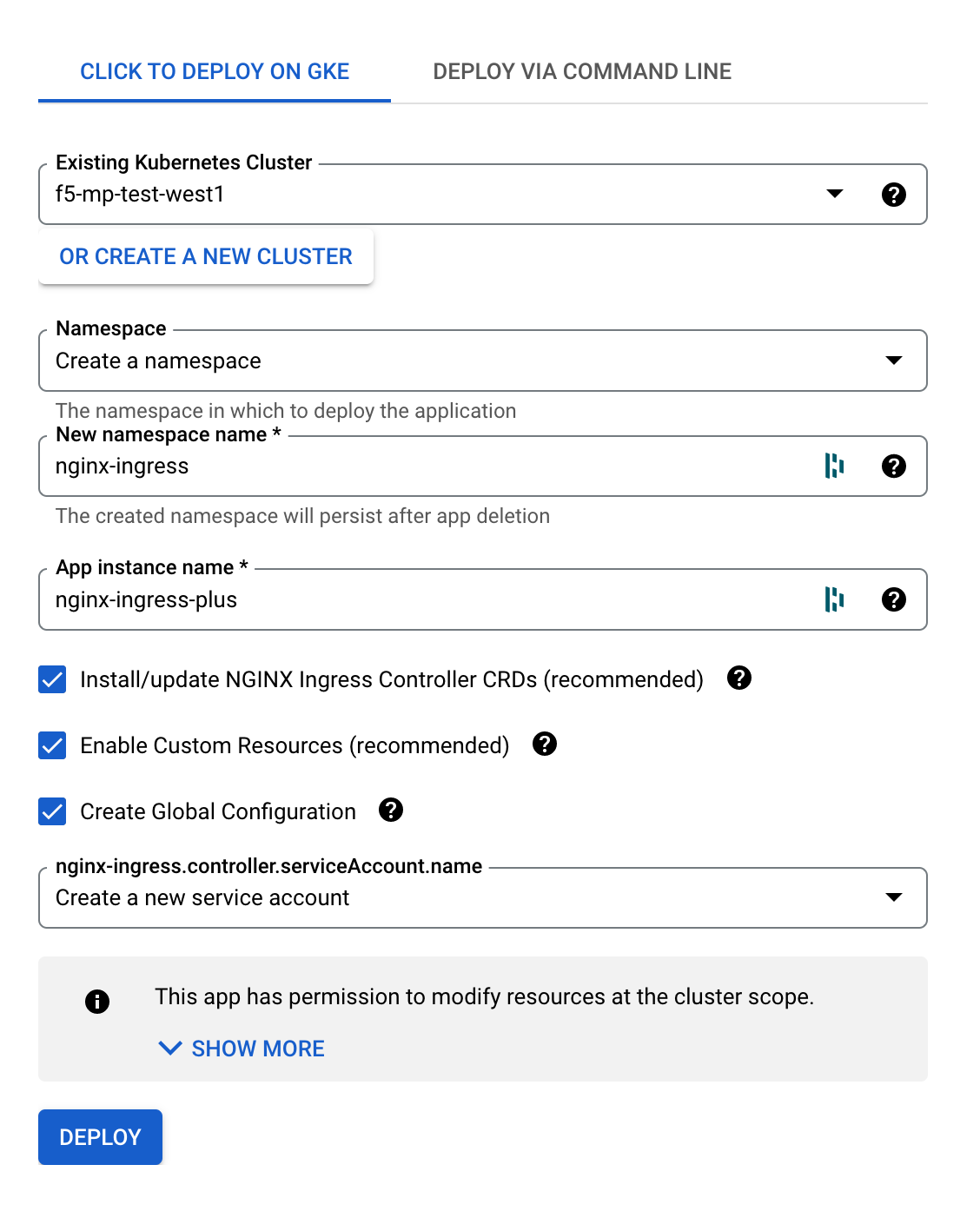

    Install to existing GKE cluster

    Choose an Existing Kubernetes Cluster to target from the options provided.

    The default namespace will be selected automatically, but you can choose to Create a namespace and enter the New namespace name.

    The App instance name will be used as a prefix for all resources created by the deployment, and must be unique within the selected namespace. A default value will be generated and can be used as-is, or changed.

    Recommended options for NGINX Ingress Controller will be pre-selected, but can be adjusted as necessary.

    Click DEPLOY to launch NGINX Ingress Controller installation process.

    Install to existing GKE cluster

    You can find the NGINX Ingress Controller application by navigating back to Kubernetes Engine > Applications

Install NGINX Ingress Controller to a new GKE cluster

As an alternative to using an existing GKE cluster, GCP Marketplace can create a small zonal cluster for you during the installation process. Please note that you will need to resize the cluster to provide enough vCPU for NGINX Ingress Controller and your other applications.

  1. Find NGINX Ingress Controller on the marketplace

    Open Google Cloud Console and navigate to Marketplace, then search for NGINX Ingress Controller

    NOTE: Please verify that you select a Premium Edition controller image that has been published by NGINX, Inc., and not a third-party.

    Choose the appropriate NGINX Ingress Controller image, and click CONFIGURE

  2. Configure the new GKE cluster

    Choose the zone, network, and subnetwork that is appropriate for your new cluster from the options provided.

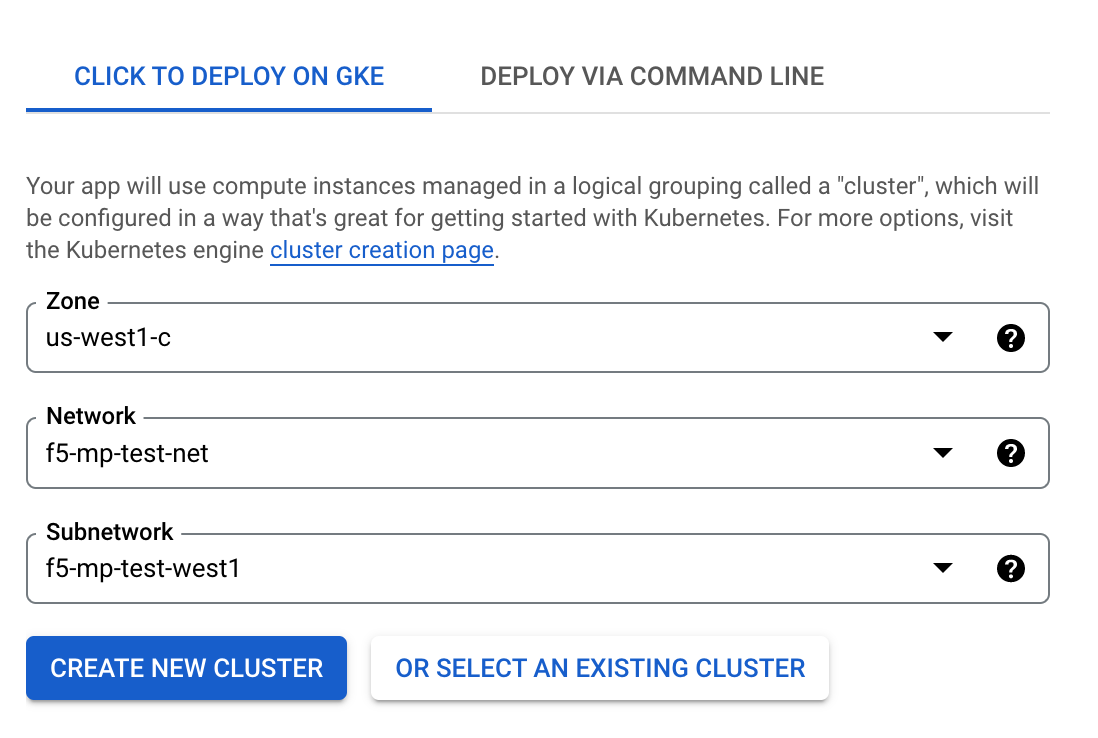

    Create a new GKE cluster

    Click CREATE NEW CLUSTER.

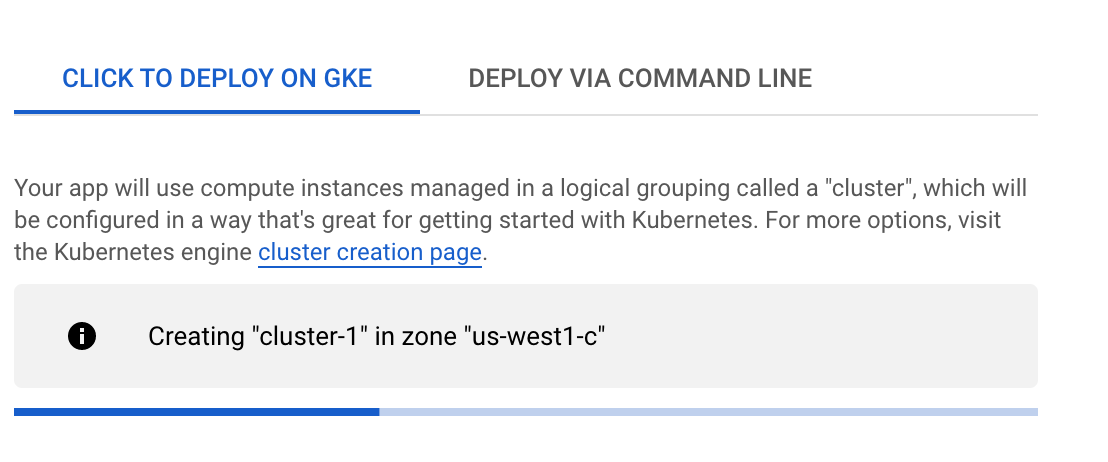

    New cluster creation in progress

    After a short delay the cluster will be ready for step 3.

  3. Complete the NGINX Ingress Controller deployment options

    Complete new GKE cluster installation

    The default namespace will be selected automatically, but you can choose to Create a namespace and enter the New namespace name.

    The App instance name will be used as a prefix for all resources created by the deployment, and must be unique within the selected namespace. A default value will be generated and can be used as-is, or changed.

    Recommended options for NGINX Ingress Controller will be pre-selected, but can be adjusted as necessary.

    Click DEPLOY to launch NGINX Ingress Controller installation process.

    Install to existing GKE cluster

    You can find the NGINX Ingress Controller application by navigating back to Kubernetes Engine > Applications

Configuration

The GCP Marketplace will deploy the NGINX Ingress Controller with a default configuration and an empty ConfigMap. These resources will all be named <app-instance-name>-nginx-ingress, where <app-instance-name> matches the value you provided during the installation step.

For example, if NGINX Ingress Controller was deployed to namespace nginx-ingress and with an App instance name of nginx-ingress-plus (as used in the examples above), the ConfigMap can be viewed with kubectl:

$ kubectl get configmap -n nginx-ingress nginx-ingress-plus-nginx-ingress -o yaml
apiVersion: v1
kind: ConfigMap
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","data":null,"kind":"ConfigMap","metadata":{"annotations":{},"labels":{"app.kubernetes.io/instance":"nginx-ingress-plus","app.kubernetes.io/managed-by":"Helm","app.kubernetes.io/name":"nginx-ingress-plus-nginx-ingress","helm.sh/chart":"nginx-ingress-0.16.2"},"name":"nginx-ingress-plus-nginx-ingress","namespace":"nginx-ingress","ownerReferences":[{"apiVersion":"app.k8s.io/v1beta1","blockOwnerDeletion":true,"kind":"Application","name":"nginx-ingress-plus","uid":"5cbbebd8-df13-4001-bd65-9467405d9a9d"}]}}
  creationTimestamp: "2022-08-25T01:03:10Z"
  labels:
    app.kubernetes.io/instance: nginx-ingress-plus
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: nginx-ingress-plus-nginx-ingress
    helm.sh/chart: nginx-ingress-0.16.2
  name: nginx-ingress-plus-nginx-ingress
  namespace: nginx-ingress
  ownerReferences:
  - apiVersion: app.k8s.io/v1beta1
    blockOwnerDeletion: true
    kind: Application
    name: nginx-ingress-plus
    uid: 5cbbebd8-df13-4001-bd65-9467405d9a9d
  resourceVersion: "147519"
  uid: 3fa33891-7a30-4004-91bd-bd5d652e34a9

See the Configuration documentation to modify the resources.

Basic Usage

To setup a basic application that uses the NGINX Ingress Controller, see our basic configuration example page.
